■ 基本信息

■ 質粒屬性

■ 質粒簡介

pTWIN1 is an E. coli plasmid cloning vector designed for recombinant protein expression, labeling, and cyclization using the IMPACT-TWIN Kit (1). It contains the pMB1 origin of replication from pBR322 and is maintained at a similar copy number to pBR322; in addition, pTWIN1 also contains an M13 origin of replication.

The multiple cloning site (MCS) is positioned to allow translational fusion of an intein tag to the N-terminus, C-terminus, or both, of the cloned target protein. The mini-inteins encoded by pTWIN1, the Ssp DnaB intein and the Mxe GyrA intein, cleave the peptide bond at their C- and N-termini, respectively (1-4). The chitin binding domain (CBD) from B. circulans, fused to each intein, facilitates purification of the intein-target protein precursor.

Transcription of the intein tags is controlled by the inducible T7 promoter, requiring E. coli strains containing integrated copies of the T7 RNA polymerase gene [e.g. BL21(DE3)] for expression. Basal expression from the T7 promoter is minimized by the binding of the Lac repressor, encoded by the lacI gene, to the lac operator immediately downstream of the T7 promoter (5). Translation of the intein tags utilizes the translation initiation signal (Shine Dalgarno sequence) from the strongly expressed T7 gene 10 protein (φ10).

質粒只保證關鍵序列正確，不保證表達效果。

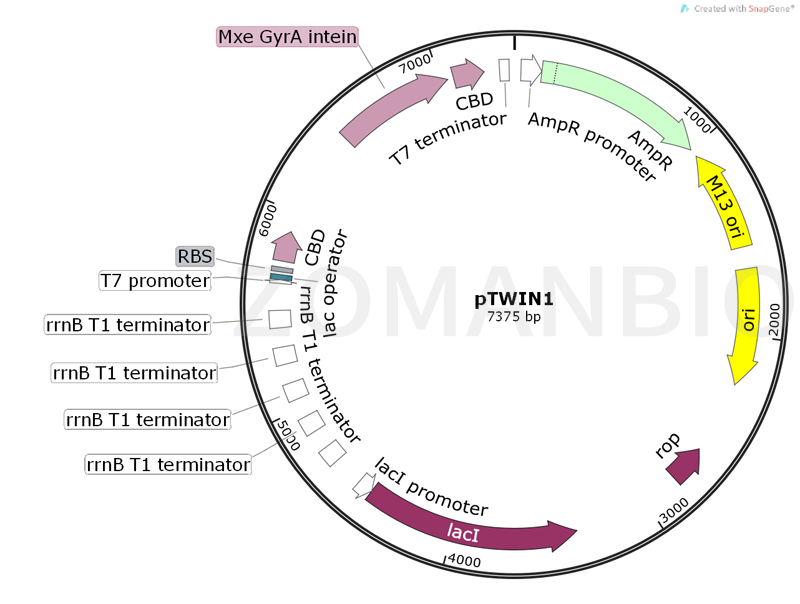

■ 質粒圖譜

■ 質粒序列

質粒序列請下載：ZK336pTWIN1大腸表達質粒.txt
